LIGHTNING CAL™
Portable Calibration Gases

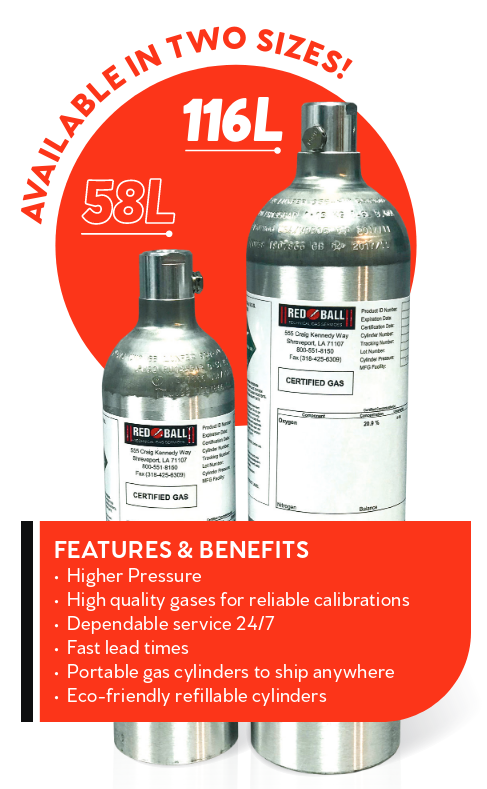

Lightning Cal™ cylinders are Red Ball Oxygen's line of portable and eco-friendly calibration gas cylinders. Lightning Cal™ offers high-quality gas mixtures and portable cylinders manufactured for high accuracy, checked by rigorous quality control processes, and made ready for your every need. Our outstanding products and service aim to help you increase your productivity.
All our Lightning Cal™ cylinders are manufactured in our own ISO/IEC 17025:2017 Accredited Specialty Gas Laboratory in Shreveport, LA. Our lab has been an industry leader in providing our customers with the highest quality pure, mixed, and custom blended gases.
- Cylinders are aluminium based and lightweight
- Cylinders are compact than your regular calibration gas cylinders
- Due to its light weight design, these cylinders can be practically shipped anywhere
- Extremely competitive lead times
- 24x7 Electronic access to Certificate of Analysis
The part number formulation is determined by cylinder size,component of interest, and gas concentration. The part number formulation is size-suffix-concentration.
Examples
- PN 58L-21A-5 is a 58 Liter cylinder containing 5 PPM Methane Bal Air
- PN 116L-27-10 is a 116 Liter cylinder containing 10% Oxygen Bal N2
- PN 116L-1 is a 116 Liter cylinder containing UHP Argon.
| Suffix | Concentration | Gas |
|---|---|---|
| 1 | 100.00% | Argon* |
| 2 | 100.00% | Carbon Dioxide* |
| 3 | 100.00% | Helium* |
| 4 | 100.00% | Hydrogen* |
| 5 | 100.00% | Nitrogen* |
| 6 | 100.00% | Methane* |
| 7 | x= PPM | Ammonia/Air |
| 8 | x= PPM | Ammonia/N2 |
| 9A | x= PPM | Benzene/Air |
| 9N | x= PPM | Benzene/N2 |
| 10A | x= PPM | Butane/Air |
| 10N | x= PPM | Butane/N2 |
| 11A | x=% | Butane/Air |
| 11N | x=% | Butane/N2 |
| 12A | x= PPM | Carbon Dioxide/Air |
| 12N | x= PPM | Carbon Dioxide/N2 |
| 13A | x=% | Carbon Dioxide/Air |
| 13N | x=% | Carbon Dioxide/N2 |
| 14A | x= PPM | Carbon Monoxide/Air |
| 14N | x= PPM | Carbon Monoxide/N2 |
| 15A | x=% | Carbon Monoxide/Air |
| 15N | x=% | Carbon Monoxide/N2 |
| 16 | x= PPM | Ethane/N2 |
| 17 | x=% | Ethane/N2 |
| 18A | x= PPM | Ethylene/Air |
| 18N | x= PPM | Ethylene/N2 |
| 19A | x=% | Ethylene/Air |
| 19N | x=% | Ethylene/N2 |
| 20N | x= PPM | Hydrogen Sulfide/N2 |
| 20M | x= PPM | Hydrogen Sulfide/Methane |
| 21A | x= PPM | Methane/Air |
| 21N | x= PPM | Methane/N2 |
| 22A | x=% | Methane/Air |
| 22N | x=% | Methane/N2 |
| 23 | x= PPM | Nitric Oxide/N2 |
| 24A | x= PPM | Nitrogen Dioxide/Air |
| 24N | x= PPM | Nitrogen Dioxide/N2 |
| 25 | x= PPM | Nitrous Oxide/N2 |
| 26 | x= PPM | Oxygen/N2 |
| 27 | x=% | Oxygen/N2 |
| 28 | 20.90% | Oxygen/N2 (Zero Air) |
| 29 | x= PPM | Pentane/N2 |
| 30 | x=% | Pentane/N2 |
| 31A | x= PPM | Propane/ Air |
| 31N | x = % | Propane/N2 |
| 32A | x = % | Propane/Air |
| 32N | x = PPM | Propane/N2 |
| 33 | x = PPM | Sulfur Dioxide/N2 |
| 34 | x = PPM | Toluene/Air |
| 35 | x = PPM | Toluene/N2 |
* Pure Gases
Other blends available on request
The part number is formulated by using the cylinder size followed by the suffix.
Examples
- PN 58L-104 is a 58 Liter cylinder containing 25 PPM
- H2S 0.35% Pentane 10% 02 Bal N2
| Suffix | Blend |
|---|---|
| 100 | 100 PPM CO 25 PPM H2S 2.5% CH4 18% 02 BAL N2 |
| 101 | LO0PPM CO 25PPM H2S 2.5% CH4 19% 02 BAL N2 |
| 102 | 2% H2 (50% LEL) BALANCE AIR |
| 103 | 2.5% METHANE (50% LEL) BAL AIR |
| 104 | 25PPM H2S 0.35% PENTANE 10% 02 BAL N2 |
| 105 | 50 PPM CO 10 PPM H2S 2.5% CH4 18% 02 BAL N2 |
| 106 | 50 PPM CO 25 PPM H2S 2.5% CH4 12% 02 BAL N2 |
| 107 | S0PPM CO L0PPM SO2 2.5% CH4 BAL AIR |
| 108 | S0PPM CO 2.5% CH4(50%LEL) 12% 02 BAL N2 |
| 109 | 6% PROPANE(29% LEL) BAL N2 |
| 110 | 60 PPM CO 1.45% PENTANE 20 PPM H2S 15% 02 BAL N2 |
| 111 | 1% CO2 20% 02 BAL N2 |
Other blends available on request
